6009 LV (Low Viscosity) Metallic Epoxy
6009 LV Metallic Epoxy is a 100% solids, advanced epoxy resin with the following features:
- Resistant to amine blush and water spotting.
- Specifically formulated with lower viscosity for improved flowability and reduced air bubbles.
- Designed to penetrate, seal, and protect substrates for enhanced durability and appearance.

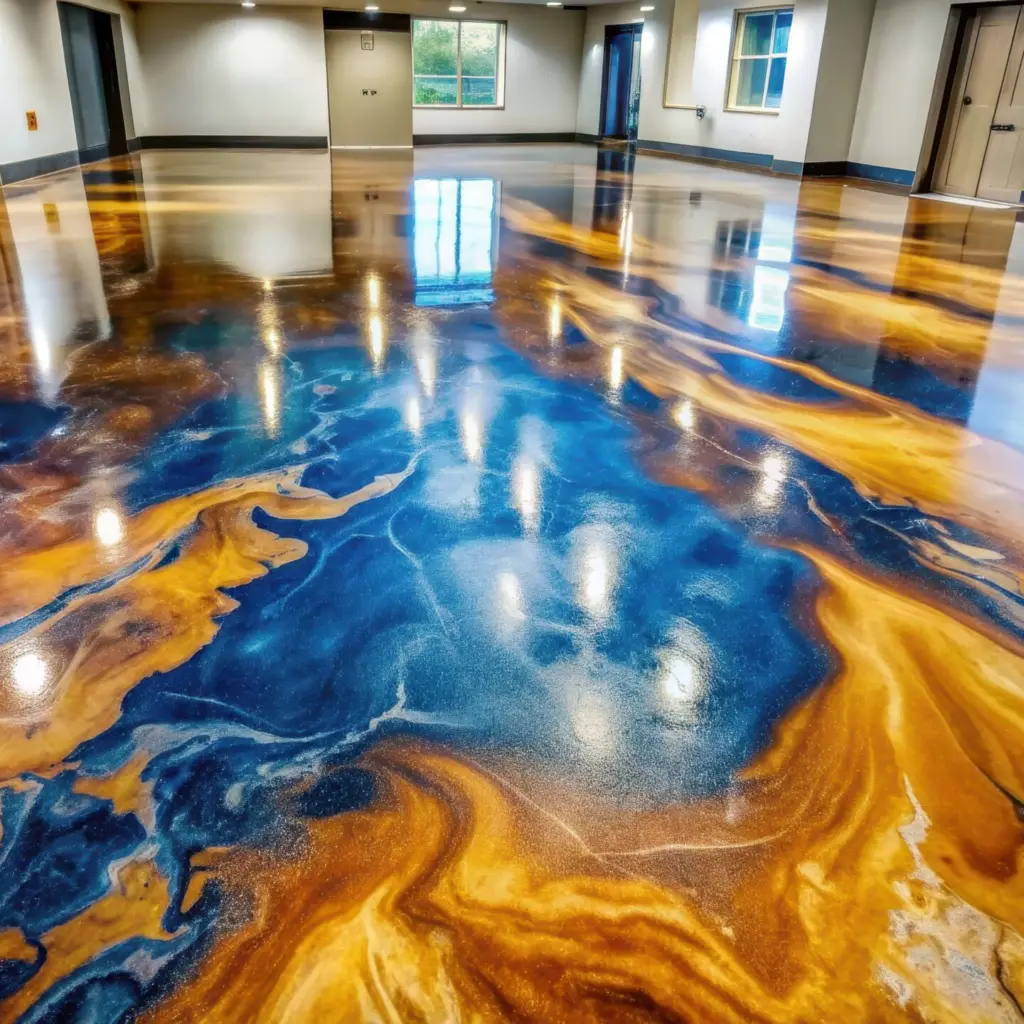

- Ideal for all metallic epoxy flooring applications, providing a clear, glass-like finish.
Unique Characteristics
- Extended Working Time: Ideal for intricate designs and large surface areas.
- Low Viscosity: Ensures smooth application and minimal bubbling.
- Air Release Agents: Reduces microbubbles for a flawless finish.
- Compatibility: Designed for use with ASTC pigments and metallic powder packs.
- Versatility: Suitable for industrial, commercial, and decorative applications.
Advantages
- High build and excellent color stability.
- Resistant to most tire stains (plasticizer migration).
- Exceptional abrasion and chemical resistance.
- Clear cross-linking finish with a glass-like appearance.
- Increased flowability and air release for seamless application.
- Compatible with accelerators for faster curing.
Applications
The 6009 LV Metallic Epoxy is suitable for:
- Decorative Floor Finishes: Industrial, commercial, and residential floors.
- Interior Applications: Non-UV-stable environments.
- Specialty Coatings: Clear topcoats for color chips, quartz, and metallic designs.
- Industrial Floors: Warehouses, containment areas, and pedestrian walkways.
Preparation
- Concrete Cure: Ensure a minimum 28-day cure period.
- Surface Cleaning: Remove contaminants, oils, wax, and old coatings.
- Moisture Testing: Conduct a moisture vapor test to ensure substrate compatibility.
- Surface Profiling: Abrade to a rough profile of at least 2 mils.
- Crack and Void Repair: Seal and repair imperfections using ASTC-approved materials.
Priming and Moisture Vapor Reduction
- Compatible with 6000 Series Epoxy Primers, 70001 Pen Prime, and 8000 CMW.
- For higher moisture vapor transmission (up to 18 psi), use the 6007 Nova Bar Epoxy Primer.
Mixing and Pigmentation
- Mixing:
- Use a jiffy mixer with a 450 rpm drill motor.
- Mix components A and B for 2–3 minutes, avoiding air entrapment.
- Transfer to a clean container and remix before application.
- Pigmentation:
- Use 12–14 ounces of pigment per mixed gallon.
- For metallic powders, pre-mix into the B component 24 hours before use.
Application Guidelines
- Temperature Range: 35°F to 125°F.
- Film Thickness: Apply in films of 8–16 mils per coat.
- Recoat Timing: Apply a second coat as soon as the first is walkable (8–10 hours).
General Physical Characteristics
Characteristic | Details |
Solids | 100% |
Appearance | Clear |
Viscosity | 350–600 cps |
Gel Time (100g) | 3–4 hours |
Hardness (Shore D) | 70 |
Tensile Strength | 9,300–10,000 psi |
Flexural Strength | 94 MPa |
VOC Content | 0 g/L |
Chemical Resistance Chart
Chemical | 24 hrs | 7 days |
10% Acetic Acid | + | Yellowing |
50% Sulfuric Acid | + | + |
Motor Oil | + | + |
Brake Fluid | + | Slight Blister |
Mustard | – | Yellowing |
Key:
- Positive Result (No Effect)
- Negative Result (Slight Effect)
Environmental Considerations
- Cold Temperatures: Slower curing below 50°F; use accelerators for improved performance.
- Hot Temperatures: Faster curing above 85°F; mix smaller batches to prevent premature setting.
Limitations
- Avoid application on wet surfaces or standing water.
- Store product on wood pallets in a dry, room-temperature environment.
- For professional use only. Refer to the MSDS before application.
